ARCTIC P14 Max Computer case Fan 14 cm Black

SKU

ACFAN00287A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€16.95 €13.78

Available To Ship

140 mm, PWM, 400 - 2800 RPM, 95.00 cfm, 12 V DC, 3-pin, 245 g

Category: Computer Cooling Systems

Reasons To Buy

Extremely Wide Speed Range

Building up on the success of the P14 PWM, the P14 Max extends the controllable speed to an impressively wide range from 400 rpm up to 2800 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P14 Max provides a significant performance boost to existing air and water cooling solutions.

Maximum Performance — Without Compromises

The P14 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P14 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

0 dB Mode — Zero rpm

The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P14 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

Improved Stability

The P14 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.

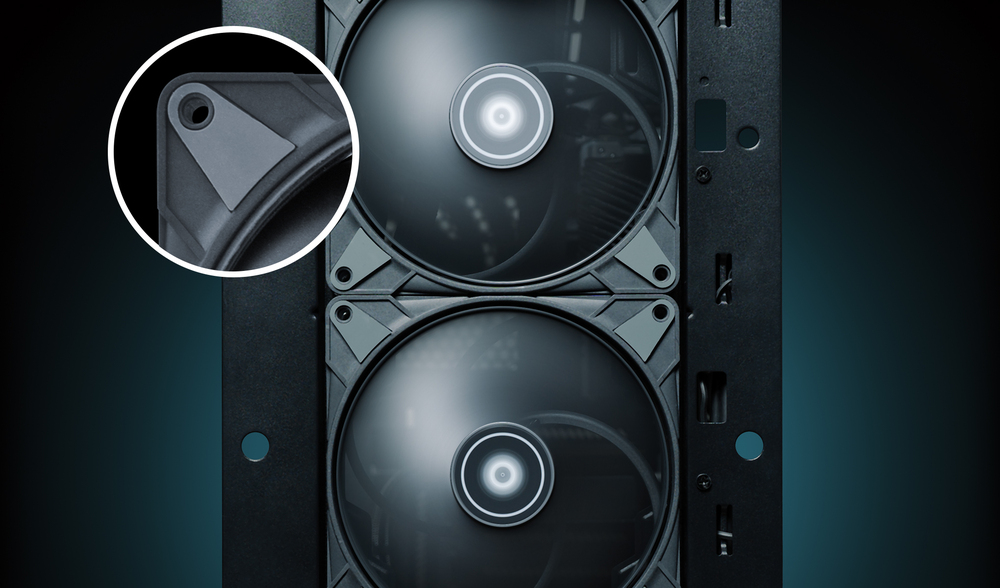

Maximum Smoothness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.

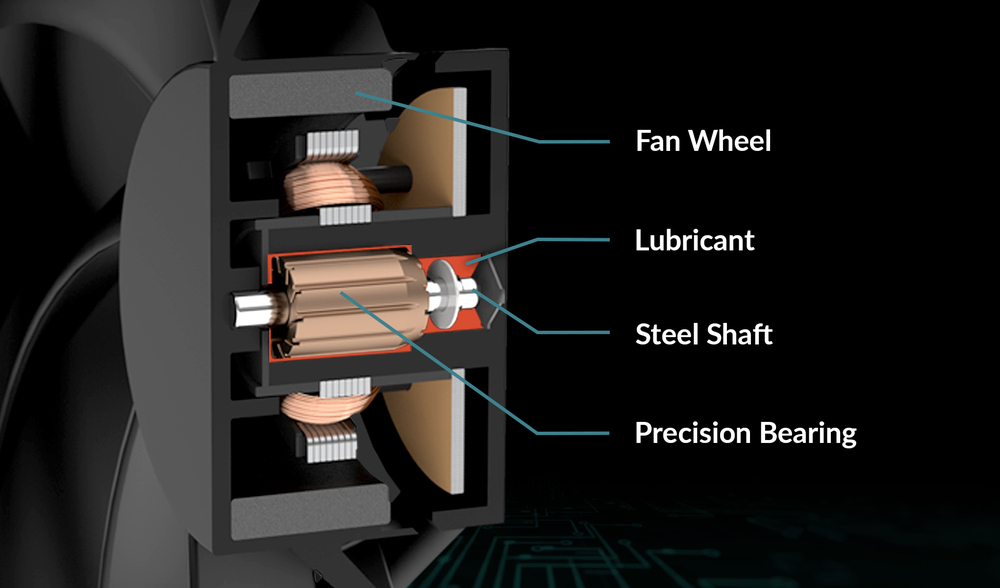

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the P14 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Description

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	400 RPM
Rotational speed (max)	2800 RPM
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	14 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	95 cfm
Maximum air pressure	4.18 mmH2O
Airflow	161.4 m³/h
Number of fans	1 fan(s)
Number of fan blades	5
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.4 m
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	14 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	95 cfm
Maximum air pressure	4.18 mmH2O
Airflow	161.4 m³/h
Number of fans	1 fan(s)
Cable length	0.4 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Starting voltage	3.9 V
Voltage	12 V
Rated current	0.35 A

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Package depth	167 mm
Package width	167 mm
Package height	34 mm
Width	140 mm
Package weight	303 g
Depth	140 mm
Height	27 mm
Weight	254 g
Cable length	0.4 m
Packaging data
Package depth	167 mm
Package width	167 mm
Package height	34 mm
Package weight	303 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box
